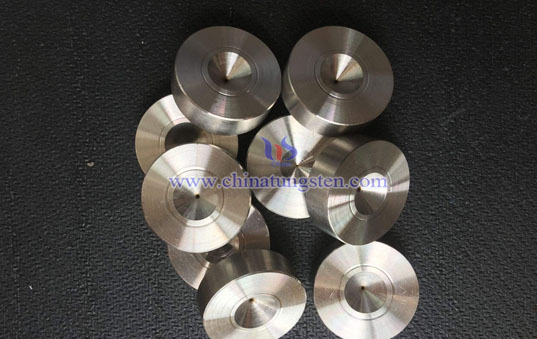

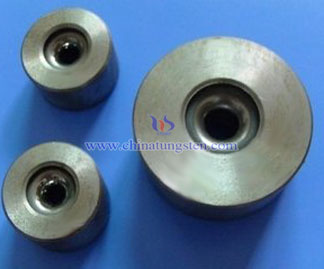

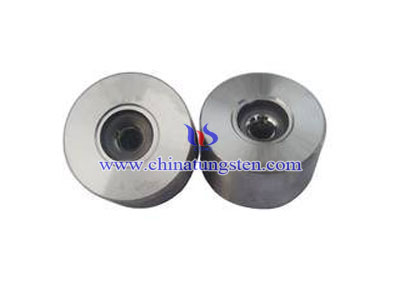

Tungsten Carbide Nibs

Tungsten carbide nibs, also called tungsten carbide drawing dies, are used in drawing industries for drawing of different materials like Mild Steel (M.S), High Carbon (H.C), Stainless Steel (S.S), Brass, Aluminum, etc because of their superior strength, toughness, and wear resistance. It has very high compressive strength and hence can take high pressure.

We can supply varies of tungsten carbide grades, such as YG3,YG3X,YG6,YG6X,YG6A,YG8, and so on.

The performance and uses of grades as follows:

Grade Equal to ISO Category Number Performance uses
Density
G/Cm3
Bend Strength
N/mm2
Hardness
HRA
YG3 K01 14.9-15.3 1180 ≥90.5 Qualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles.
YG3X K01 15.1-15.4 ≥1300 ≥91.5
YG6X K10 14.8-15.1 ≥1560 ≥91.0 Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron.
YG6A K10 14.7-15.1 ≥1580 ≥91.0
YG6 K20 14.7-15.1 ≥1670 ≥89.5 Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.
YG8 K20-K30 14.6-14.9 ≥1840 ≥89 Qualified for rough machining of cast iron, non-ferrous metal, and nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts.

If you have any other question or inquiry of tungsten carbide nibs, please feel free to contact us through the following methods:
Email:sales@chinatungsten.com   sales@xiamentungsten.com
Tel.: +86 592 5129696/86 592 5129595
Fax: +86 592 5129797
