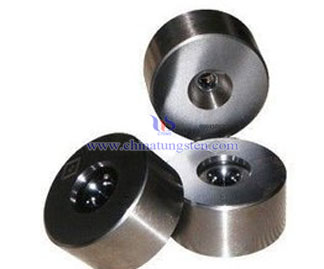

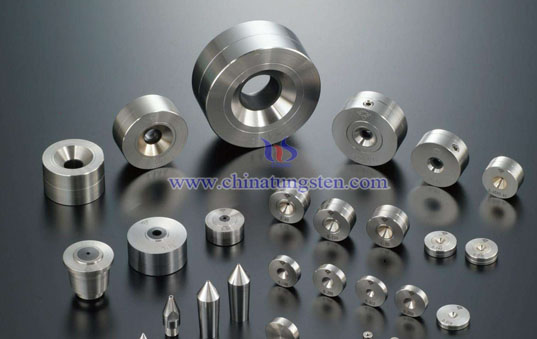

Tungsten Carbide Nibs for Metal Strips
Strips nibs in round, hex, square and any other special shapes are used for drawing of bright strips of various materials like Mild Steel (M.S), Stainless Steel (S.S), Brass, Copper etc.
S42 Tungsten carbide nibs for drawing metal strips:
| Type | Dimension (mm) | Reference dimension (mm) | |||||||||||
D |
H |
a |
b |
2α |
2β |
2γ |
h |
h1 |
h2 |
R |
r |
e |
|
S42-1.9×1.0 |
20 |
12 |
1.9 |
1.0 |
18° |
60° |
60° |
2.0 |
2.0 |
4.0 |
3.0 |
0.5 |
1.0 |
S42-1.9×1.4 |
20 |
12 |
1.9 |
1.4 |
18° |
60° |
60° |
2.0 |
2.0 |
4.0 |
3.0 |
0.6 |
1.0 |
S42-2.4×1.0 |
20 |
12 |
2.4 |
1.0 |
18° |
60° |
60° |
2.0 |
2.0 |
4.0 |
3.0 |
0.5 |
1.0 |
S42-2.4×1.4 |
20 |
12 |
2.4 |
1.4 |
18° |
60° |
60° |
2.0 |
2.0 |
4.0 |
3.0 |
0.6 |
1.0 |
S42-3.1×1.0 |
20 |
12 |
3.1 |
1.0 |
18° |
60° |
60° |
2.0 |
2.0 |
4.0 |
3.0 |
0.5 |
1.0 |
S42-3.1×1.4 |
20 |
12 |
3.1 |
1.4 |
18° |
60° |
60° |
2.0 |
2.0 |
4.0 |
3.0 |
0.6 |
1.0 |
S42-3.1×1.9 |
20 |
12 |
3.1 |
1.9 |
18° |
60° |
60° |
2.0 |
2.0 |
4.0 |
3.0 |
0.6 |
1.0 |
S42-3.9×1.0 |
25 |
15 |
3.9 |
1.0 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.5 |
1.2 |
S42-3.9×1.5 |
25 |
15 |
3.9 |
1.5 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.6 |
1.2 |
S42-3.9×1.9 |
25 |
15 |
3.9 |
1.9 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.6 |
1.2 |
S42-3.9×2.4 |
25 |
15 |
3.9 |
2.4 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.8 |
1.2 |
S42-4.5×1.1 |
25 |
15 |
4.5 |
1.1 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.5 |
1.2 |
S42-4.5×1.5 |
25 |
15 |
4.5 |
1.5 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.6 |
1.2 |
S42-4.5×1.9 |
25 |
15 |
4.5 |
1.9 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.6 |
1.2 |
S42-4.5×2.4 |
25 |
15 |
4.5 |
2.4 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.8 |
1.2 |
S42-4.5×2.8 |
25 |
15 |
4.5 |
2.8 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.8 |
1.2 |
