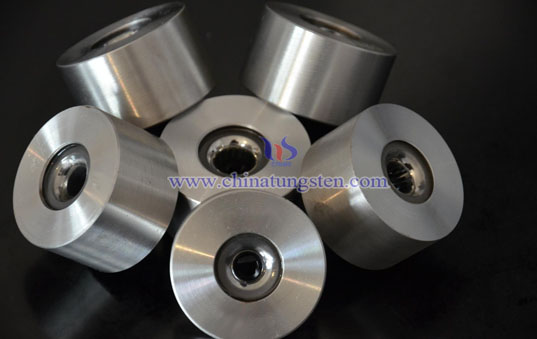

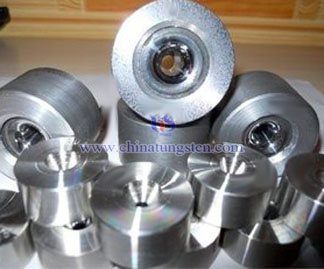

Tungsten Carbide Nibs for Metal Rods
Rods nibs in round, hex, square and any other special shapes are used for drawing of bright rods of various materials like Mild Steel (M.S), Stainless Steel (S.S), Brass, Copper etc.
S13 Tungsten carbide nibs for drawing metal rods:
Type |
Dimension (mm) |
Reference dimension (mm) |
||||||||||
D |
H |
d |
2α |
2β |
2γ |
h |
h1 |
h2 |
R |
e |
ε |
|
A10-0.15 |
10 |
8 |
0.15 |
12° |
90° |
90° |
≤0.1 |
1.6 |
3.7 |
5.0 |
1.0 |
45° |
A10-0.2 |
10 |
8 |
0.20 |
12° |
90° |
90° |
≤0.1 |
1.6 |
3.7 |
5.0 |
1.0 |
45° |
A10-0.25 |
10 |
8 |
0.25 |
12° |
90° |
90° |
≤0.1 |
1.6 |
3.7 |
5.0 |
1.0 |
45° |
A10-0.30 |
10 |
8 |
0.30 |
12° |
90° |
90° |
≤0.1 |
1.6 |
3.7 |
5.0 |
1.0 |
45° |
A10-0.35 |
10 |
8 |
0.35 |
12° |
90° |
90° |
≤0.1 |
1.6 |
3.7 |
5.0 |
1.0 |
45° |
A10-0.4 |
10 |
8 |
0.40 |
12° |
90° |
90° |
≤0.1 |
1.6 |
3.7 |
5.0 |
1.0 |
45° |
A10-0.5 |
10 |
8 |
0.50 |
12° |
90° |
90° |
≤0.2 |
1.6 |
3.6 |
— |
1.0 |
45° |
A12-0.2 |
12 |
10 |
0.20 |
12° |
90° |
90° |
≤0.1 |
1.2 |
2.9 |
6.5 |
1.2 |
15° |
A12-0.25 |
12 |
10 |
0.25 |
12° |
90° |
90° |
≤0.1 |
1.2 |
2.9 |
6.5 |
1.2 |
15° |
A12-0.3 |
12 |
10 |
0.30 |
12° |
90° |
90° |
≤0.1 |
1.2 |
2.9 |
6.5 |
1.2 |
15° |
A12-0.35 |
12 |
10 |
0.35 |
12° |
90° |
90° |
≤0.1 |
1.2 |
2.9 |
6.5 |
1.2 |
15° |
A12-0.4 |
12 |
10 |
0.40 |
12° |
90° |
90° |
0.4 |
2.0 |
5.0 |
— |
1.0 |
45° |
A12-0.5 |
12 |
10 |
0.50 |
12° |
90° |
90° |
0.4 |
2.0 |
5.0 |
— |
1.0 |
45° |
A14-0.4 |
14 |
12 |
0.5 |
12° |
60° |
75° |
0.4 |
2.0 |
5.0 |
— |
1.0 |
45° |
A14-0.6 |
14 |
12 |
0.6 |
12° |
60° |
75° |
0.5 |
2.0 |
5.0 |
— |
1.0 |
45° |
A14-0.7 |
14 |
12 |
0.7 |
12° |
60° |
75° |
0.5 |
2.0 |
5.0 |
— |
1.0 |
45° |
A14-0.8 |
14 |
12 |
0.8 |
12° |
60° |
75° |
0.6 |
2.0 |
5.0 |
— |
1.0 |
45° |
A14-0.9 |
14 |
12 |
0.9 |
12° |
60° |
75° |
0.6 |
2.0 |
5.0 |
— |
1.0 |
45° |
A14-1.0 |
14 |
12 |
1.0 |
12° |
60° |
75° |
0.7 |
2.0 |
5.0 |
— |
1.0 |
45° |
A16-0.6 |
16 |
13 |
0.6 |
12° |
60° |
75° |
0.5 |
2.5 |
4.5 |
— |
1.0 |
45° |
A16-0.7 |
16 |
13 |
0.7 |
12° |
60° |
75° |
0.5 |
2.5 |
4.5 |
— |
1.0 |
45° |
A16-0.8 |
16 |
13 |
0.8 |
12° |
60° |
75° |
0.6 |
2.5 |
4.5 |
— |
1.0 |
45° |
A16-0.9 |
16 |
13 |
0.9 |
12° |
60° |
75° |
0.5 |
2.5 |
4.5 |
— |
1.0 |
45° |
A16-1.0 |
16 |
13 |
1.0 |
12° |
60° |
75° |
0.7 |
2.5 |
4.5 |
— |
1.0 |
45° |
A20-1.0 |
20 |
17 |
1.0 |
12° |
60° |
60° |
0.7 |
3.0 |
8.0 |
— |
1.2 |
45° |
A20-1.1 |
20 |
17 |
1.1 |
12° |
60° |
60° |
0.7 |
3.0 |
8.0 |
— |
1.2 |
45° |
A20-1.2 |
20 |
17 |
1.2 |
12° |
60° |
60° |
0.7 |
3.0 |
8.0 |
— |
1.2 |
45° |
A20-1.3 |
20 |
17 |
1.3 |
12° |
60° |
60° |
1.0 |
3.0 |
8.0 |
— |
1.2 |
45° |
A20-1.4 |
20 |
17 |
1.4 |
12° |
60° |
60° |
1.0 |
3.0 |
7.5 |
— |
1.2 |
45° |
A20-1.5 |
20 |
17 |
1.5 |
12° |
60° |
60° |
1.0 |
3.0 |
7.5 |
— |
1.2 |
45° |
A25-2.3 |
25 |
20 |
2.3 |
14° |
60° |
60° |
1.3 |
4.0 |
8.5 |
— |
1.2 |
45° |
A25-2.4 |
25 |
20 |
2.4 |
14° |
60° |
60° |
1.3 |
4.0 |
8.5 |
— |
1.2 |
45° |
A25-2.5 |
25 |
20 |
2.5 |
14° |
60° |
60° |
1.3 |
4.0 |
8.5 |
— |
1.2 |
45° |
A25-2.6 |
25 |
20 |
2.6 |
14° |
60° |
60° |
1.3 |
4.0 |
8.5 |
— |
1.2 |
45° |
A25-2.7 |
25 |
20 |
2.7 |
14° |
60° |
60° |
1.3 |
4.0 |
8.5 |
— |
1.2 |
45° |
A25-2.8 |
25 |
20 |
2.8 |
14° |
60° |
60° |
1.4 |
4.0 |
8.5 |
— |
1.2 |
45° |
A25-2.9 |
25 |
20 |
2.9 |
14° |
60° |
60° |
1.4 |
4.0 |
8.5 |
— |
1.2 |
45° |
A25-3.0 |
25 |
20 |
3.0 |
14° |
60° |
60° |
1.5 |
4.0 |
8.5 |
— |
1.2 |
45° |
A29-6.9 |
29 |
20 |
6.9 |
14° |
60° |
60° |
2.5 |
4.0 |
8.0 |
— |
1.2 |
45° |
A30-3.8 |
30 |
24 |
3.8 |
16° |
60° |
60° |
2.5 |
5.0 |
8.0 |
— |
1.2 |
45° |
A30-4.0 |
30 |
24 |
4.0 |
16° |
60° |
60° |
2.5 |
5.0 |
8.0 |
— |
1.2 |
45° |
A30-4.2 |
30 |
24 |
4.2 |
16° |
60° |
60° |
2.5 |
5.0 |
8.0 |
— |
1.2 |
45° |
A30-4.5 |
30 |
24 |
4.5 |
16° |
60° |
60° |
2.5 |
4.0 |
8.0 |
— |
1.2 |
45° |
S214 Tungsten carbide nibs for drawing nonferrous metal rods:
Type |
Dimensions |
Reference Dimensions |
||||||||
D |
d |
d1 |
H |
h1 |
h |
α0 |
β0 |
R |
e |
|
V13-0.4 |
13 |
0.4 |
9 |
10 |
3.0 |
0.6 |
120 |
900 |
6 |
1.2 |
V13-0.6 |
13 |
0.6 |
9 |
10 |
2.0 |
0.6 |
120 |
900 |
6 |
1.2 |
V13-1.3 |
13 |
1.3 |
9 |
10 |
3.0 |
0.6 |
120 |
900 |
6 |
1.2 |
V13-1.5 |
13 |
1.5 |
9 |
10 |
2.0 |
0.6 |
120 |
900 |
6 |
1.2 |
V15-0.4 |
15 |
0.4 |
13 |
12 |
2.0 |
0.6 |
120 |
850 |
9.65 |
1.2 |
V15-1.5 |
15 |
1.5 |
12 |
13 |
2.0 |
1.0 |
120 |
850 |
6.79 |
1.2 |
V17-0.5 |
17 |
0.5 |
13 |
15 |
3.0 |
0.6 |
140 |
900 |
10 |
1.2 |
V17-0.6 |
17 |
0.6 |
13 |
15 |
3.0 |
0.6 |
140 |
900 |
10 |
1.2 |
V17-0.8 |
17 |
0.8 |
13 |
15 |
3.0 |
0.7 |
140 |
900 |
10 |
1.2 |
V17-1.0 |
17 |
1.0 |
13 |
15 |
3.0 |
0.7 |
140 |
900 |
10 |
1.2 |
V17-1.2 |
17 |
1.2 |
13 |
15 |
3.0 |
0.9 |
140 |
900 |
10 |
1.2 |
V17-1.5 |
17 |
1.5 |
13 |
15 |
3.0 |
0.9 |
140 |
900 |
10 |
1.2 |
V17-2.0 |
17 |
2.0 |
13 |
15 |
3.0 |
1.0 |
140 |
900 |
10 |
1.2 |
V17-2.5 |
17 |
2.5 |
13 |
15 |
3.0 |
1.0 |
140 |
900 |
10 |
1.2 |
V17-3.0 |
17 |
3.0 |
13 |
15 |
3.0 |
1.0 |
140 |
900 |
10 |
1.2 |
V17-3.5 |
17 |
3.5 |
13 |
15 |
3.0 |
1.3 |
140 |
900 |
10 |
1.2 |
V17-4.0 |
17 |
4.0 |
13 |
15 |
3.0 |
1.5 |
140 |
900 |
10 |
1.2 |
V19-1.0 |
19 |
1.0 |
15 |
17 |
2.5 |
1.0 |
120 |
850 |
8.5 |
1.5 |
V19-1.5 |
19 |
1.5 |
15 |
17 |
2.5 |
1.2 |
120 |
850 |
8.5 |
1.5 |
V19-2.0 |
19 |
2.0 |
15 |
17 |
2.5 |
1.3 |
120 |
850 |
8.5 |
1.5 |
V19-3.0 |
19 |
3.0 |
15 |
17 |
2.5 |
1.5 |
120 |
850 |
8.5 |
1.5 |
V19-4.0 |
19 |
4.0 |
15 |
17 |
2.5 |
1.7 |
120 |
850 |
8.5 |
1.5 |
V22-1.5 |
22 |
1.5 |
18 |
18 |
3.6 |
1.0 |
160 |
900 |
12 |
1.5 |
V22-2.0 |
22 |
2.0 |
18 |
18 |
3.6 |
1.0 |
160 |
900 |
12 |
1.5 |
V22-3.0 |
22 |
3.0 |
18 |
18 |
3.6 |
1.0 |
160 |
900 |
12 |
1.5 |
V22-3.5 |
22 |
3.5 |
18 |
18 |
3.6 |
1.5 |
160 |
900 |
12 |
1.5 |
V22-4.0 |
22 |
4.0 |
18 |
18 |
3.6 |
1.5 |
160 |
900 |
12 |
1.5 |
V22-4.5 |
22 |
4.5 |
18 |
18 |
3.6 |
1.8 |
160 |
900 |
12 |
1.5 |
V22-5.0 |
22 |
5.0 |
18 |
18 |
3.6 |
1.8 |
160 |
900 |
12 |
1.5 |
V22-5.5 |
22 |
5.5 |
18 |
18 |
3.6 |
2.0 |
160 |
900 |
12 |
1.5 |
V22-6.0 |
22 |
6.0 |
18 |
18 |
3.6 |
2.0 |
160 |
900 |
12 |
1.5 |
V22-6.5 |
22 |
6.5 |
18 |
18 |
3.6 |
2.0 |
160 |
900 |
12 |
1.5 |
V30-7.7-L |
30 |
7.7 |
25 |
20 |
3.5 |
3.0 |
180 |
750 |
11 |
1.5 |
V30-9.0-L |
30 |
9.0 |
25 |
20 |
3.5 |
3.0 |
180 |
750 |
11 |
1.5 |
V30-10.0L |
30 |
10.0 |
25 |
20 |
3.5 |
3.0 |
180 |
750 |
11 |
1.5 |
